1. Yanhua ACDP-2 VW MQB48/49 5A 5C Package with Module 34 and License
2. Includes ACDP-2 Master and VW MQB48/49 Module 34
3. Support VW RH850 series R7F7xx0x chip model instruments (5A) IMMO and mileage correction (5A/5C)

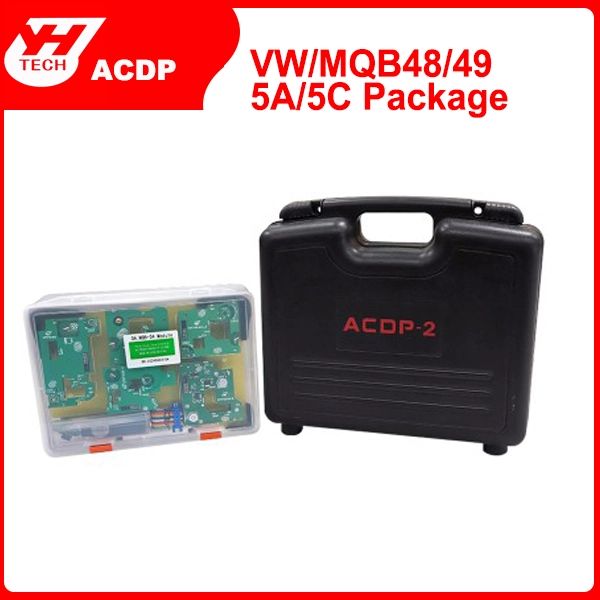

Yanhua ACDP-2 VW MQB48/49 5A 5C Package with Module 34
Package Features:

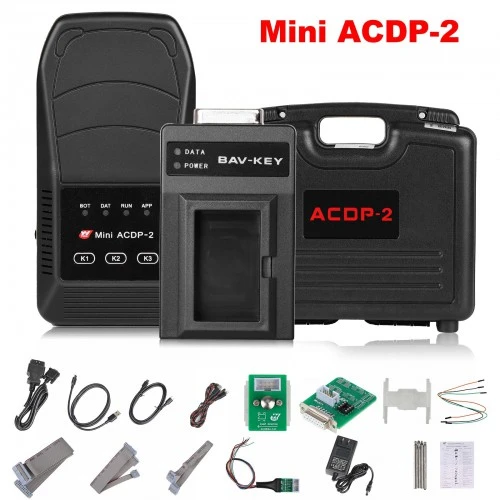

ACDP 2 Programmer with License A801
Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration for other modules.
#MQB-34 Module with License A609
Support VW RH850 series R7F7xx0x chip model instruments (5A) IMMO and mileage correction (5A/5C)

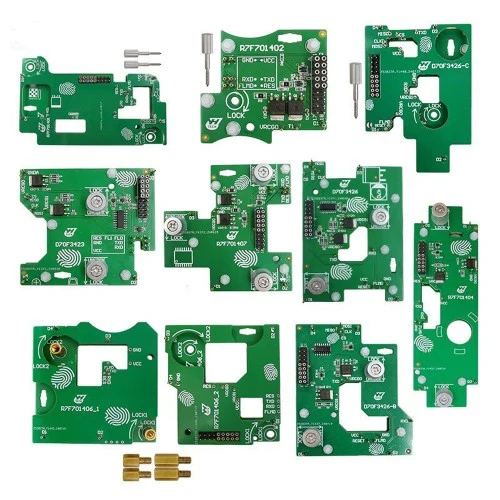

Module 34 Supported odometer number(not limited to):
R71F701401/R7F⁷01402/R7F7014075A:
83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640,
3GB920790, 56G920790, 3VD920740B
R7F701401/R7F701402/R7F701404/R7F701405/R7F701406/R7F7014075C:
3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C, 5GD920640D, 5ED920860C, 19G920650B,
19G920650C, 55G920650A, 55G920650B, 55G920650C, 5HG920340, 5HG920340A, 5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E
D70F3423 +95320: 31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C, 34D920850E, 31G920860A, 34D920850G
D70F3426+95128: 5GG920640, 5GG920860, 5GG920860A, 5G0920861A

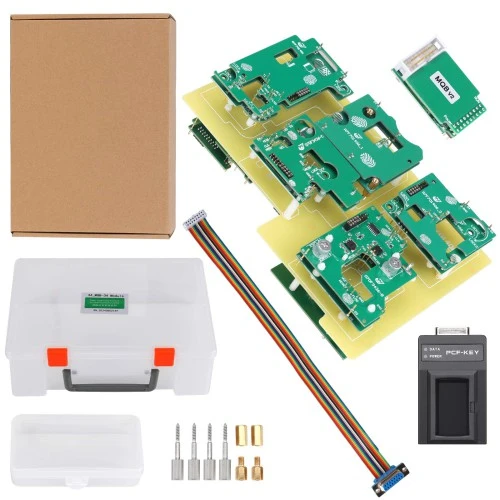

Package List:
1 full set x Yanhua ACDP-2
1 full set x MQB-34 module
