- Autel MaxiIM KM100E is a professional intelligent car key tool that integrates universal key generation, transponder reading/ cloning, and IMMO learning in a compact and easy-to-use design.

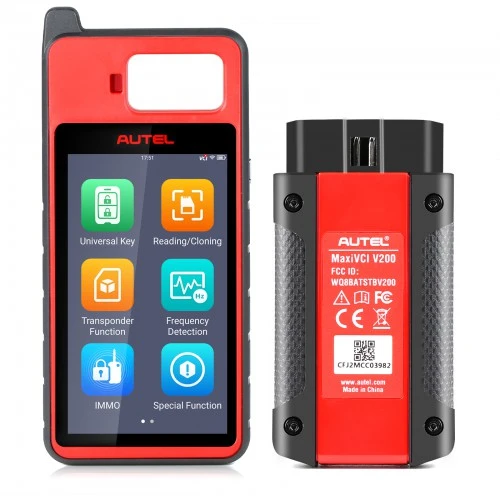

- Equipped with the MaxiVCI V200 vehicle communication interface device, Autel KM100E easily offers you one-stop service from universal key generation to key learning.
- With Built-in APB112 Functions.
Autel MaxiIM KM100E Universal Key Generator Kit Support Transponder Reading/ Cloning and IMMO Learning

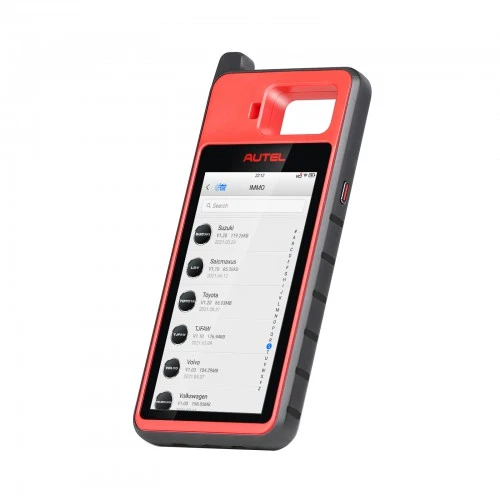

Autel MaxiIM KM100E is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel Key as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including for BMW, for Volkswagen, for Toyota, for Honda, and for General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.
Highlights:
1. Free Update Online Lifetime
2. Global Version No IP Blocking Problem
3. Multi-Language: English, German, Spanish, French, Polish, Portuguese, Italian, Dutch, Swedish, Russian, Turkish, Hebrew, Arabic and Simplified Chinese
4. Support AutoVIN
5 Simple Operation, Guided User Instructions, Easy To Use
6. Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
7. Supporting 8 Key Series And 37 Models
8. Programs Autel's IKEY Universal Key as Smart Key Replacement for More Than 700 Vehicles
9. Support Chip Simulation for Emergency Use (for ID46 47 48 49 4A 8A), which can be used in an emergency when there is no chip around.
10. With Built-in APB112 Functions (covers all functions of Autel APB112 Smart Key Fob Emulator)
11. Please Check Autel MaxiIM KM100E Support List for reference
12. 10+ Hot Special Functions : provide all-to-solve services for auto smart keys including button adjustment, IMMO data processing, key unlocking, universal key information detection, ignition coil detection, etc.
13. Enhanced Configuration with faster Android 9.0, larger 2+64GB, 4950mAh battery for 8+ hours lasting use.
Features:
1. Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
2. 60-Second Key Generation (Autel Universal Only)
3. Transponder Reading/ Writing/ Cloning
4. Chip Read & Write, Cloning and Frequency Detection
5. Key Renewal: Supporting 36 Vehicle Makes
6. Transponder Editing: Supporting 20 Categories
7. Supporting Certification Requirements of Various Regions
8. Dual-Band, High Frequency Transmitter 315m/434m or 868m/915m Supporting Certification Requirements of Various Regions
9. Contains MaxiVCI VCI200 so you can perform key simulation and key learning after generating a key. You can generate the key and go directly into programming with two button presses.
10. Use the USB cable to transfer data from another device, such as IM608, to a laptop and from the laptop to the key tool.
11. The key tool comes with 2 blank keys for you to use at your convenience. One has the Autel logo on the back and the other does not.
12. Supports generate aftermarket chip, i.e xhorse super chip. But can generate xt27 only once, need to reset chip with xhorse tool if want a second generation
13. The immo programming is very impressive. It is same as im508 for immo but without programmer. You can use it instead of im508 im608 on many vehicles to program keys as it's simple and easy to pack/unpack and compact, it's convenience.
Vehicle Compatibility:
* Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
* Supporting 8 Key Series And 37 Models
* Covering The Top 100 Selling Models In North America For The Last 10 Years
Functions:
1. IMMO Functions:
The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBDII connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, and Remote Control Add, etc.
1) IMMO Status Scan--The IMMO Status Scan function performs a comprehensive scanning over all the systems on the vehicle’s IMMO ECU in order to locate fault systems and retrieve DTCs.
2) Control Unit--This option allows you to manually locate a required IMMO control system for testing through a series of choices. The function menu may include: Immobilizer, Remote System, Bosch(MED9)-Engine.
3) Hot Function--Hot function consists of guided functions with step-by-step instructions. The available functions may vary depending on the test vehicle. In this case, only Add Key (guided) function is available. Follow the on-screen instructions to complete the operation.
4) Vehicle IMMO Information--This function retrieves and displays the specific information for the tested IMMO ECU, including vehicle VIN number, PIN code and other IMMO information.
2. 60S Key Generation:
Supports more than 700 model years covering European, American, and Asian models; 60 seconds to generate a sub-machine, the efficiency is increased by 50%, and the sub-machine generation is simple and efficient; after the sub-machine is generated, one-click jump to the anti-theft matching function of the corresponding model, without Menu selection again, the process is simple and coherent.
3. Key Unlocking:
The Key Unlocking function enables you to renew a used smart key to unlock a new car. This is achieved by renewing the firmware of the used smart key via cable connection.
4. Toyota Smart Unlocking:
You may use this function to unlock other Toyota models with your Toyota smart key.
To perform the Toyota Smart Unlocking:
* Place your key into the key slot.
* Tap the Unlock button at the bottom screen to start unlocking.
* The LED on your key will illuminate, which indicates that the unlocking is successful.
5. 2pcs Autel Ikey:
1) Support 8 series, 37 types appearances, and continue increasing.
2) Support compatible low frequency (315M/433M) and high frequency (868M/915M) types.
3) Each model is strictly implemented according to the acceptance indicators of immo, RKE and PKE.
* 8 Serices IMMO Types: ID46, ID47, ID49, ID4A, ID5C, Megamos 48, MQB. (ID4D: ID4D only has remote control. If the key is out of power and the vehicle cannot be started in an emergency, an additional 4D transponder need be installed)
6. Transponder Reading:
Transponder reading gives you the access to some basic information of the key, including chip type, IMMO type, transponder ID, locking status, and code mode. To read the transponder information, place the transponder into the transponder slot or put the key into the key slot and tap the Read button. The Transponder Information screen will appear.
7. Transponder Cloning:
You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.
The KM100 supports various transponder types for cloning and editing. Choose the corresponding cloning procedure according to your transponder identification number (ID).
46 password calculation
42 transponder cloning
11 transponder cloning
12 transponder cloning
13 transponder cloning
33 transponder cloning
8C transponder cloning
8 Transponder Editing:
This function helps you read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs. When a writing operation is successfully done, a "writing succeeded" message will appear, and you may move to another operation.
9. Transponder Functions:
1). Read chip type, IMMO type, transponder ID, locking status, code mode etc.
2). Generate a functional transponder for your vehicle.
3). Edit transponder information0
4). The Transponder Simulation function can be used to simulate the KM100 as a transponder using a variety of IMMO protocols. This function is particularly useful when your vehicle needs emergency start or such.
5). Conversion between two types of Ford transponder--ID63 and ID83.
How to Do Key Generation via Autel KM100?
1. Automatically scan the VIN code to obtain vehicle information
2. Obtain model information by scanning the VIN barcode on the nameplate
3. Scan the license plate number to confirm the model, if you can't scan it, you need to enter it manually
4. PLC V200 Bluetooth picks up the car, after generating the remote control, you can directly select the immo function to match the key, without the need to push back to the main interface to select the IMMO function, and then re-select the model.
Autel MaxiIM KM100 Comparison:
Function Autel MaxiIM IM508 Autel MaxiIM IM608 Autel MaxiIM KM100E Universal Transponder & Key Generation No No Yes Transponder Simulation Editing & Cloning No No Yes Ignition Coil Detection No No Yes Vehicle Diagnostics Yes, Basic function Yes No Vehicle Service Functions Yes Yes No IMMO Function via Programmer Yes Yes No Frequency Reading Yes Yes Yes Frequency Detection Yes Yes Yes Key Unlocking/Key Renew Yes Yes Yes Immobilizer Data Processing Yes Yes Yes IMMO in Open OBD mode Yes Yes Yes
Autel KM100 vs Xhorse VVDI Key Tool Max vs Xhorse VVDI MINI Key Tool vs Lonsdor KH100+ vs KD-X2
Autel KM100 Xhorse VVDI Key Tool Max Xhorse VVDI MINI Key Tool Lonsdor KH100+ KD-X2 Generate Remote √ √ √ √ √ Garage Remote X √ √ √ √ Remote Clone X √ √ √ √ Read&Clone Transponder √ √ √ √ √ Generate Transponder √ √ √ √ √ Frequency Test √ √ √ √ √ Immobilizer √ X(need MINI OBD) X X X ID/IC Clone X √ √ √ √ Unlock Key √ √ √ X √ Unlock Toyota Smart Key √ √ √ √ √ Ignition Coil Detection √ √ √ √ √ Remote Simulation X √ X X X Transponder Simulation √ X X √ √ Write via Dump X √ X X X Collection Test X √ X X X IR Signal Detection X X X √ X Key Charging X √ √ √ √ Password Calculation X X X X √ ID48/ID48 96bit Clone X √ √ X √

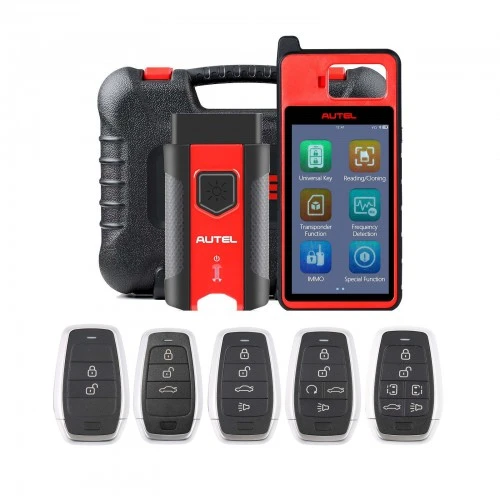

Autel MaxiIM KM100 Can be used with Autel Smart Keys

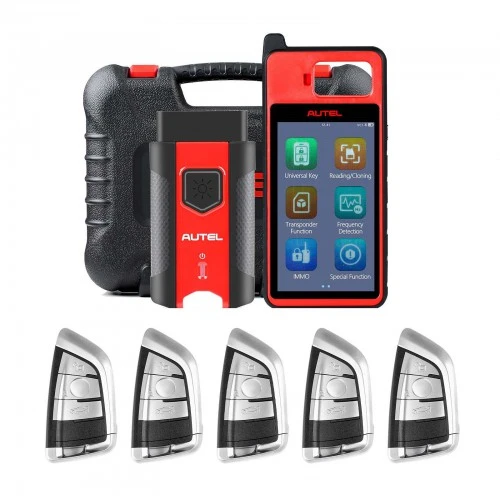

Razor Style (BMW Style):
Support all key functions (868M/915M is not included)
Premium Style (Ford High-Frequency Style):
Only support vehicles of 868M/915M frequency (BMW, Volvo are not included)
Basic Style (Chrysler, Honda, Ford and Cadillac Style):
Support all key functions (868M/915M, BMW, Volvo are not included)
Autel KM100 FAQ:
Q: Is it compatible with other brands of chips or keys?
A: Chip: Support original chip, auxiliary factory chip, such as xhorse, KD;
Key: Only support Autel key (slave)
Q: How to activate? Need activation or not?
A: Create an AUTEL account online, bind the KM100 device to activate, and use the same method as other AUTEL tablet devices. You can click here. For activation video, we will upload on youtube.
Q: Is the KM100 matching bluetooth connector compatible with the Autel MaxiVCI VCI 200?
A: not universal.
Q: How many years is the upgrade free? Or is it free for a lifetime?
A: Currently a lifetime free upgrade.
Q: Dedicated chip generation?
A: It supports sub-factory chips, such as xhorse super chip, but can only be generated once on the KM100 device. If you want to use the super chip twice, you need to reset the super chip with the xhorse device.
Q: When I get it is not Spainsh, how to do?
A: Offer us serial number when you get it, we will ask the Autel team to open the Spanish for you.

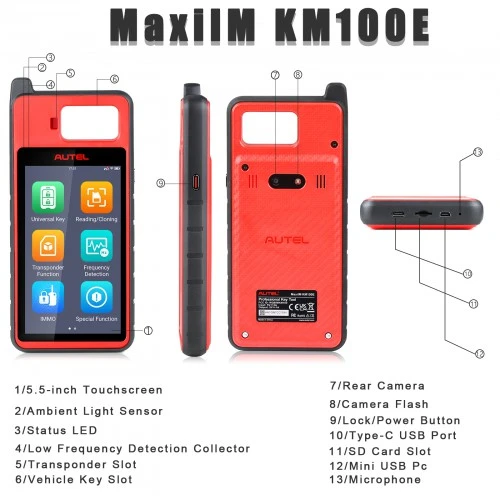

Autel MaxiIM KM100 Specification:
Screen Size: 5.5 Inch
Resolution: 1280×720p
64G Memory,2G RAM
8MP Camera
Wi-Fi& Bluetooth
Battery:4,950 mAh

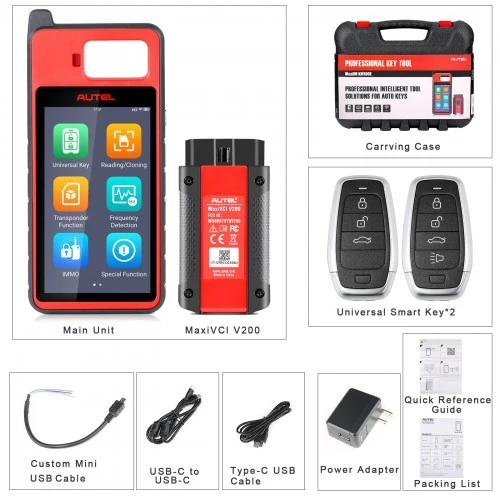

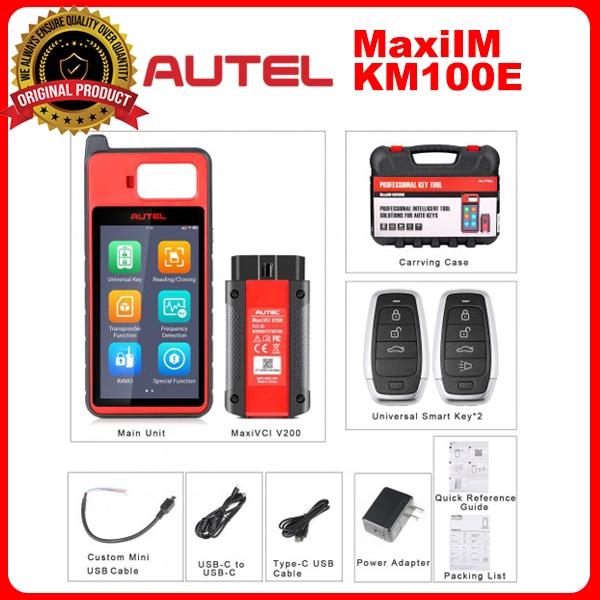

Autel MaxiIM KM100 Package List:
1pc x KM100E Universal Key Generator
1pc x OBD Adapter
2pcs x Universal Keys

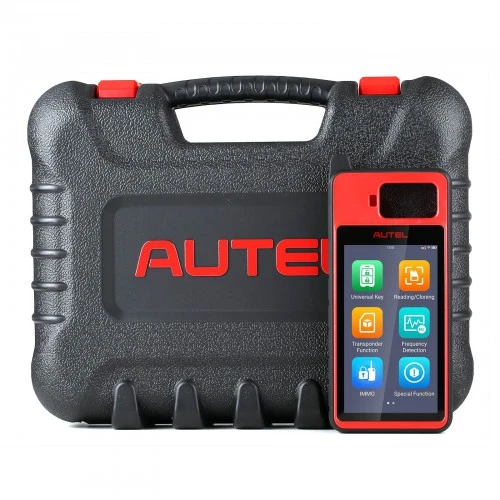

1pc x Hard Shell Carrying Case
