Yanhua ACDP VW MQB48 Module 33 Plus MQB RH850 Module 34 for VW Add Keys All Key Lost Instrument KM
Yanhua ACDP VW MQB48 Module 33 Plus MQB RH850 Module 34 for VW Add Keys All Key Lost Instrument KM with License A608 A609

This bundle package includes ACDP Module 33 and ACDP Module 34
Shop Module 33 $399 + Module 34 $360 Bundle sales price $630(save $129), this price is only available 2024.7.18-2024.9.18

ACDP Module 33 MQB-33 function:

Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction
Add keys and All key lost for Volkswagen MQB48 (AKL need to get Synchronous data from third party)

Module 33 Support the following chip module instrument cluster
3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320

ACDP Module 34 For VW MQB

1-D70F3423/3426 chip mask The 4th generation odometer Add keys & all key lost & milage correction
2- R7F71401/ 1402/ 1407 chip mask RH850 5Aodometer Add keys & all key lost & milage modify
3-R7F71401/ 1402/ 1404/ 1406/ 1407 chip mask RH850 5C odometer Mileage correct

Module 33 & Module 34 Features:

Precise pin positioning
Stable connection
Easy to set up

No welding
No warped feet
No cutting wire
data read & write is safer

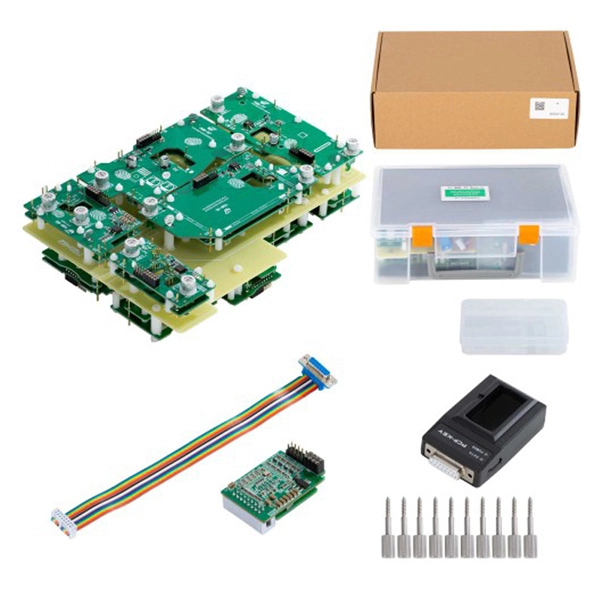

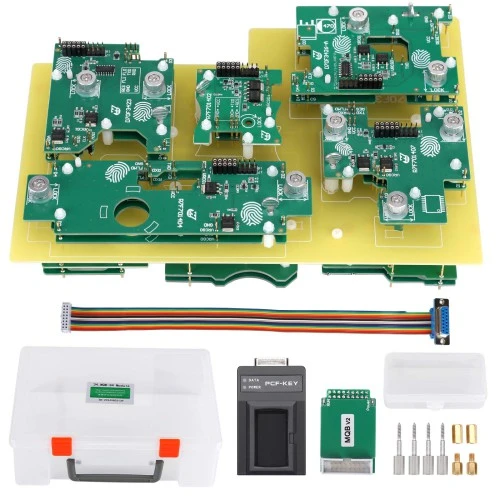

Package List:

1pc x MQB-74 Interface board
1pc x MQB-75 Interface board
1pc x MQB-77 Interface board
1pc x MQB-78 Interface board
1pc x MQB-79 Interface board
1pc x MQB-80 Interface board
1pc x MQB-81 Interface board
1pc x MQB-82 Interface board
1pc x MQB-83 Interface board
1pc x MQB-84 Interface board
1pc x MQB-85 Interface board
1pc x MQB-86 Interface board
1pc x MQB-87 Interface board

1pc x R7F701401 Interface board
1pc x R7F701402 Interface board
1pc x R7F701404 Interface board
1pc x R7F701406-1 Interface board
1pc x R7F701406-2 Interface board
1pc x R7F701407 Interface board
1pc x D703423 Interface board
1pc x D703426-A Interface board
1pc x D703426-B Interface board
1pc x D703426-C Interface board
1pc x PCF-KEY adapter
1pc x MQB V2 adapter
1pc x 20 PIN cable
8pcs x screws

FAQ:

Q: Can they clone original cluster of golf 7 MQB to fit another donor used cluster?
A: Besides 5C, others are supported


Q: How to use it to clone the dashboard?
A:  Choose these two meun to do
