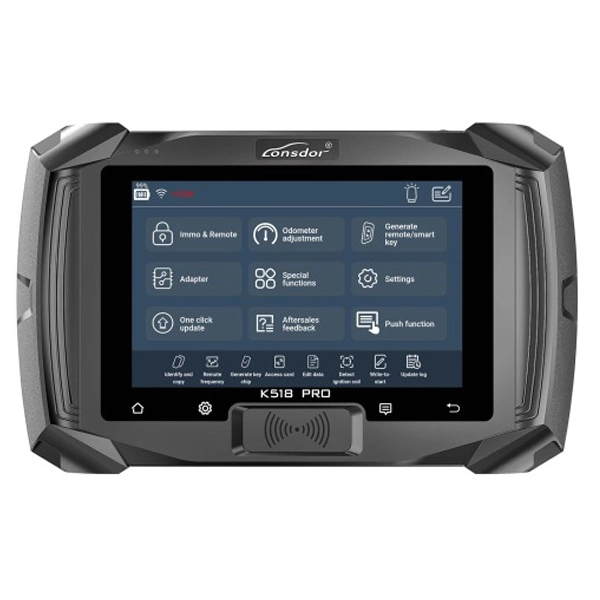

Lonsdor K518 PRO Full Configuration （K518 Pro +LT20*2+ FP30+Nissan NS-40BCM+JCD Cable+Land Rover Cable+ADP）

Product Introduction:

Lonsdor K518 PRO is an all-in-one key programmer developed by Lonsdor. K518 PRO is a multi-functional car key IMMO matching tablet and It is the second generation product of Lonsdor K518. In addition to integrating all the functions of the first generation, it adds more advantageous functions.

The device includes IMMO remote control matching, mileage recovery, key generation, adapter, chip identification copy, and key chip generation, remote control frequency detection, ignition coil detection, Toyota smart key settings, one-click upgrade, push function, etc.

Product Features:

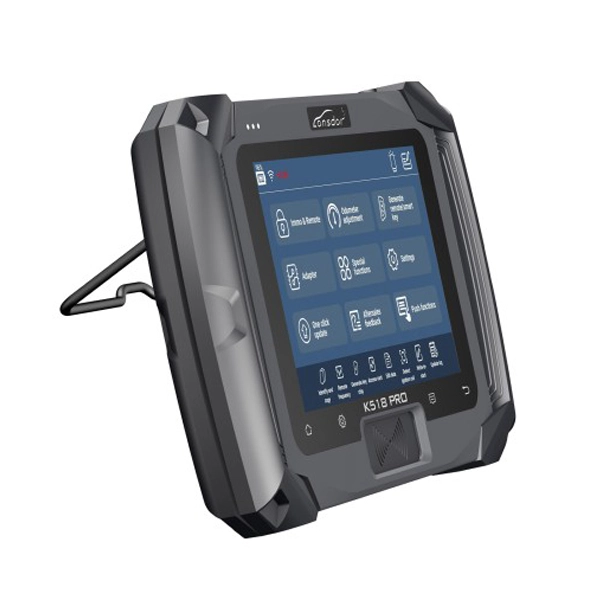

1. Modern tablet design with support bracket to further enhance user experience;

2. Build Android 9 system to optimize the operating experience;

3. The quad-core A7 has the strongest computing power, twice that of the A33;

4. Excellent and powerful ultra-high energy efficiency ratio;

5. Be the first to support 8A type (H chip) chip generation;

6. Added support for CANFD protocol and Ethernet protocol.

Product Highlights:

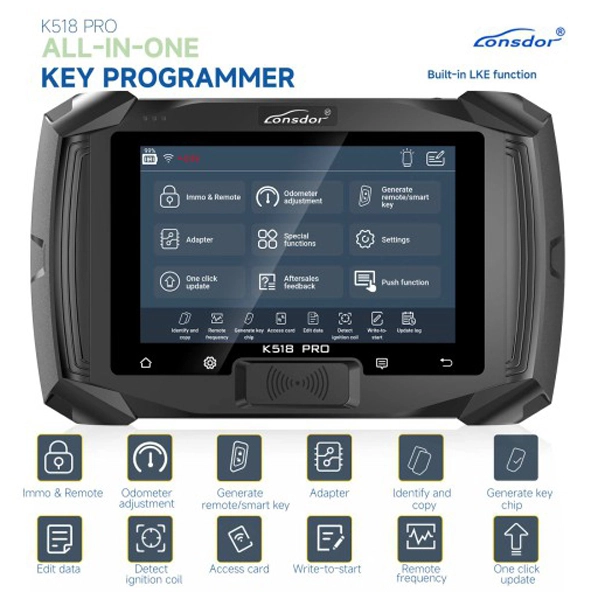

Card slot, "Bracket", Type-C, Simu-Antenna interface, DB15 interface, PS2 interface, DC charging port, Power on/off button, Full touch screen, Common shortcut Home keys, Built-in acquisition analog circuit, Built-in CANFD protocol, Built-in DOIP protocol, Bluetooth, Edit data, Detect ignition coil, Write-to-start, Detect remote frequency, Odometer adjustment, Program key/remote, Generate smart key, Identify chip, OBD cable self-test, OBD cable illumination, [Immo & Remote] and [odometer adjustment] functions add that model brand can be selected by Area, [Immo & Remote] adds frequently used menu ranking top, [Adapter] menu adds [disable immo] function.

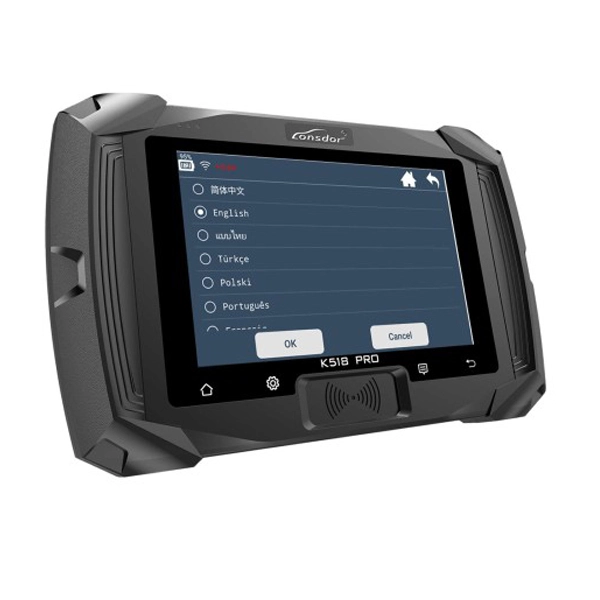

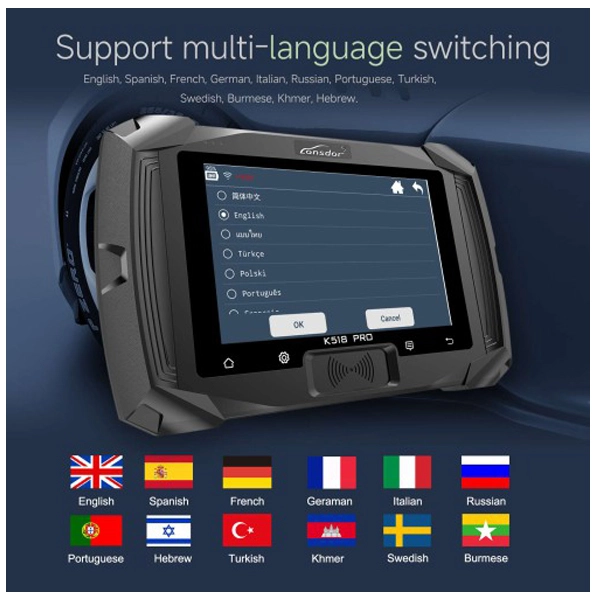

Supported language: English, Spanish, French, German, Italian, Russian, Thai, Portuguese, Indonesian, Turkish, Polish, Swedish, Burmese, Khmer, Hebrew.

Functional advantages：

1. Based on the original K518, the functions are more comprehensive;

2. All high-end models are available, as well as common domestically produced cars;

3. Most models do not require Internet access, authorization codes, and OBD matching without disassembling.

4. Built in LKE,Bluetooth,File Management, Anti-Theft Deactivation, Access Card Copy;

5. Data Write Initialization, EEPROM Data Mileag

6. Restoration,CAN-FD Protocol, DOIP Protocol.

7. Supports other functions like chip decoding, chip simulation, chip identification, remote generation, smart key generation, frequency identification

8. Support generate key chip like 4D,46,48,T5,793

Vehicle Compatibilty

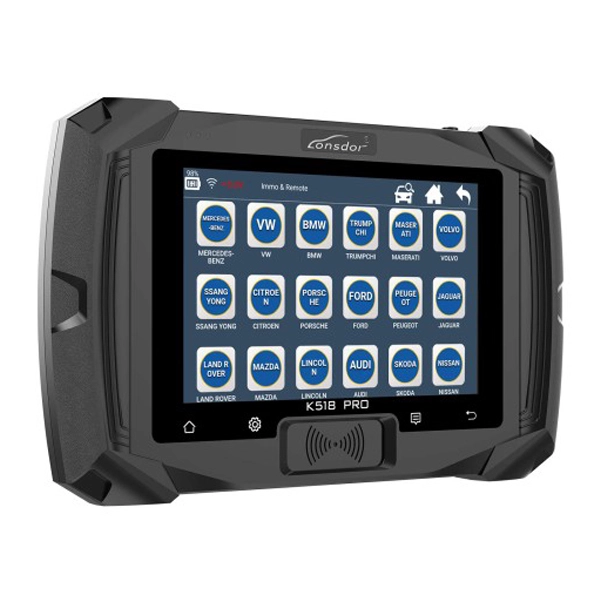

Volvo S40/ S60/ S80/ S90/ V40/ V60/ V70/V90/ C30/ C70/XC40/XC60/ XC70/ XC90 all series IMMO

Latest Toyota/Lexus chip type 8A/4A smart key programmed with free pin code

2015-2018 Land Rover/Jaguar key programmed via OBD (no disassembly required)

Land Rover/Jaguar 2018- Change RFA module to program smart key

2018- Land Rover&Jaguar -Turn off UWB PEPS function to program smart key

Latest Mazda smart key all key lost w/o PIN code

Latest Honda chip type 4A smart key all key lost

Latest Subaru chip type 8A smart key programmed

Latest Nissan New Sylphy B18,X-Trail T33 smart key all key lost

Latest Hyundai/Kia chip type 4A/47 smart key programmed

Latest Ford Mustang IMMO program

BMW CAS1/ CAS2/ CAS3/ CAS3+/ CAS3++/ CAS4/ CAS4+/FEM/ BDCIMMO

Latest GM CAN-FD protocol IMMO

90% of 2010-2020 GM models read pin code from BCM

Volkswagen/ Audi/ Skoda/ Seat MOB platform IMMO and odometer adjustment

Ssangyong smart key and mechanical key program

Latest Maserati read pin code and smart key program

Ferrari(458,F12, F149) key programmed via OBD

Support European cars such as Renault, Fiat, Opel, Peugeot, Citroen, Alfa Romeo Lancia, Dacia, etc.

Support  American cars such as Dodge, Chrysler, JEEP, Buick, Cadillac, Chevrolet, anc GMC, etc.

Supports Asian cars such as Toyota/Lexus, Honda/Acura, Mitsubishi, Subaru, Nissan/lnfiniti, Hyundai, Kia, and Proton, etc.

Supports luxury cars such as Porsche, Land Rover, Jaguar, Lamborghini, Bentley, Ferrari, and Cadillac, etc.

Supports Chinese cars such as BYD, Great Wall, Geely, BAlC, Changan, Roewe, MG, Lynk &Co, etc

Support electric cars such as Leading ldeal, Denza, Leap Motor, etc.

Product Specifications:

Operating system: android 9

Processor: Rockchip PX30

Memory: ram 2G flash 8G

Display: MIPI 800*1280

WiFi: (802.11 b/g/n)

USB: USB2.0

Bluetooth: 4.1

SD card: supports plugging and unplugging

Battery: 5800MAH

Input voltage: 12V

Shell material: PC hard shell + TPR60 °

Size: 26*3*16CM

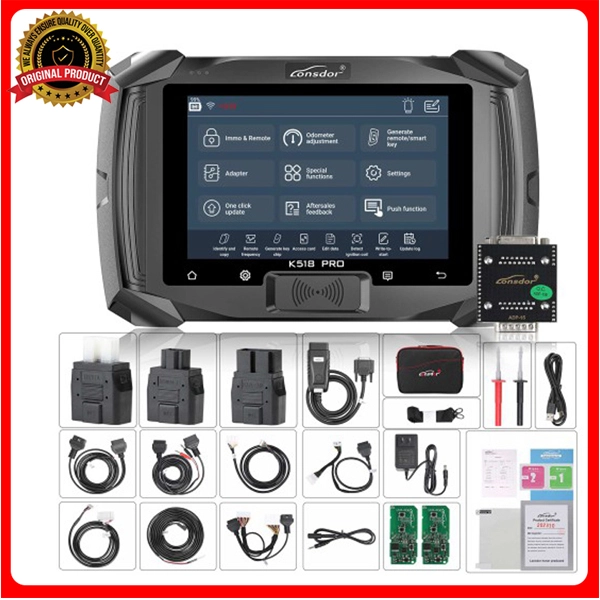

Package includes:

1pc x K518 Pro main host

1pc x Power adapter

1pc x Acquisition Antenna

1pc x Type-C cable

1pc x KIA/HYUNDAI connector
1pc x HONDA connector
1pc x KIA connector

1pc x OBD2 test cable

1pc x Certificate & user manual card

1pc x Main unit packing bag

2pcs x LT20 smart key(gift)

1pc x Toyota FP30 cable(gift)
1pc x Toyota FP27 cable(gift)
1pc x Toyota FP24 cable(gift)

1pc x Nissan-40P BCM cable(gift)

1pc x JLR cable(gift)

1pc x JCD 2-in-1 cable(gift)

1pc x ADP-15 adapter(gift)
