1. Supports remote expert function
2. Add bulit-in DoIP and CAN FD protocol (don’t need converter)
3. IM608 II improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI

Autel MaxiIM IM608 II Key Programmer 1 Year Free Update without IP Limitation

 Autel IM608 II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

Highlights:

• 10.1-inch LCD Capacitive Touchscreen
• Ambient Light Sensor – detects ambient brightness.
• IM608 II = IM608 PRO II
• No Area/IP Restrictions
• One Year Free Update Online (After One Year, IM608 II Software Subscription Cost 899USD/ Year)
• Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration
• Smart Mode and Expert Mode Solution In One Tool to Easy Operation, Works for 85% Cars In the Wordwide, Include BMW, BENZ, VW, AUDI etc
• Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)
• Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop
• Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.
• Support Multi-Language: Both Diagnostic Software and IMMO Software Support Multi-Language. (Default Language is English, but can be changed to German, Swedish, Italian, Portuguese, French, etc.)

What's the difference between IM608 II and IM608?

• IM608/Pro II has improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.
• Supports CAN protocol read and write without a password
• Add bulit-in DoIP and CAN FD protocol (don’t need converter)
• Support remote expert function

IM608 II vs IM608 Pro vs IM508S vs IM508

Item		Autel IM508	Autel IM508S	Autel IM608 Pro	Autel IM608 Pro II
Accessories	VCI			JVCI	JVCI+
	Programmer	XP200	XP200	XP400 Pro	XP400 Pro
Hardware Parameter	CPU	4x 1.6GHZ (A9)	4x 1.8GHZ (A55)	4x 1.3GHZ (A7) 2x 1.7GHZ (A55)	4x 2.2GHZ (A73) 4x 1.8GHZ (A53)
	OS	Android 4.4	Android 11	Android 4.4.2	Android 10.0
	Memory	1G RAM, 64G Flash	4G RAM, 64G Flash	2G RAM, 64G Flash	4G RAM, 128G Flash
	Display	7 inch	7 inch	10.1 inch	10.1 inch
	Resolution	1024*600	1024*600	1920*1200	1920*1200
	Battery	5000mAh	5000mAh	15000mAh	15000mAh
	VCI Connection			BT2.1/USB	BT5.0/USB
	DoIP	No	No	Need converter	Yes, no need converter
	CAN FD	Need converter	Need converter	Need converter	Yes, no need converter
Diagnostic Function	Diagnostic	Basic diagnostic	Basic diagnostic	Comprehensive diagnostic	Comprehensive diagnostic
	Coding	No	No	Yes	Yes
	Programming	No	No	BMW, Mercedes online programming	BMW, Mercedes online programming
Immobilizer Function	Immo programming	Most immo functions, Mercedes etc requires XP400 Pro	Most immo function, Mercedes etc requires XP400 Pro	Full immo function	Full immo function
	Programmer	Read/Write EEPROM	Read/Write EEPROM	Read/Write EEPROM, MCU	Read/Write EEPROM, MCU
	Key Tool Function	Yes	Yes	Yes	Yes
Remote Expert		No	No	No	Yes

Main Features of Autel IM608 II:

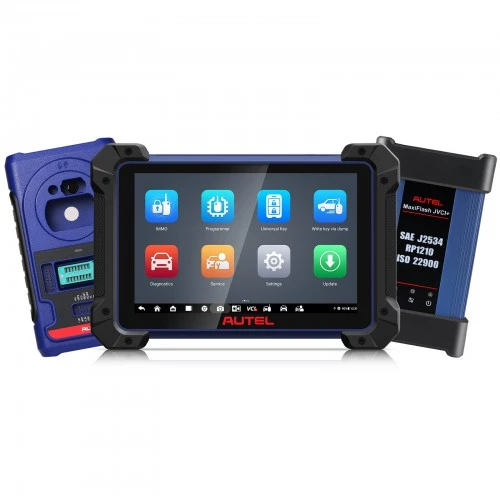

IMMO & Key Programming Bundle
MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet
Program IMMO & Keys for U.S., Asian and European Vehicles
XP400Pro Key and Chip Programmer
JVCI Wireless J2534 Pass Thru Programming Device
Bi-directional Control/ Active Tests


AUTEL IM608 II Supported Functions :
1. IMMO Functions
Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key
Advanced Programming Functions
EEPROM Read/Write
MCU Read/Write
Key Programming
Mercedes Key Read/Write
Remote Frequency Detect
OE-Level Diagnoses


2.All System Diagnostics & Advanced Service Functions (Works with the MaxiFlash JVCI (J2534 ECU Reprogrammer)
Oil Service Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
Active Test
ECU Coding
VW/Audi Component Protection
Complete Service Functions


XP400 Pro adds support for following Chips:
EEPROM-->AMD-->AM29FXXX series chip
EEPROM--> FUJITSU-->MB29FXXX series chip
EEPROM-->ST-->M29FXXX series chip
Engine control module-->SIMTEC76(AM29F800BB) write
IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->BMW-->EWS3 module read/write function
REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

XP400 Pro adds support for the following adapter board:
APB113 PCF79XX adapter board
APB114 EWS3 adapter board
APB115 NEC Adapter board
APB118 NEC ELV adapter board
APB119 TB28FXXX adapter board
APB120 TMS370 adapter board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adapter board 1
APB123 AM29FXXX adapter board 2
APB126 M35080/D80 adapter board
APB127 MC68HC0(7)05BXX adapter board
APB128 MC68HC05X32 adapter board

Advanced Key Programming Functions:
Exclusive Smart Mode to guide Key Programming
Auto Read IMMO Data via OBD
One-tap Key Programming via OBD & Easy-to-use Remote Programming
With the newly upgraded key programmer XP400 Pro
Extensive Vehicle & Functionality Coverage
Support Diagnostics & IMMO Programming for 10,000+ Models;
Support Models Up to 2020;
All System Diagnostics and Advanced Maintenance Services;
Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
Jaguar LandRover -- Add Key / All Key Lost up to 2019
Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump


IM608 Pro II Specifications

Operating   System	Android 10
Processor	Qualcomm SDM660 Octa-core Processor (2.2GHz )
Memory	4GB RAM &128GB On-board Memory
Display	10.1-inch LED capacitive touchscreen with 1920x1200 resolution
Connectivity	Wi-Fi（802.11a/b/g/n/ac）
	USB 2.0
	SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Power and Battery	15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V (9-24 V)
Power Consumption	6.5W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.58 kg (3.48 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed   and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol,   TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

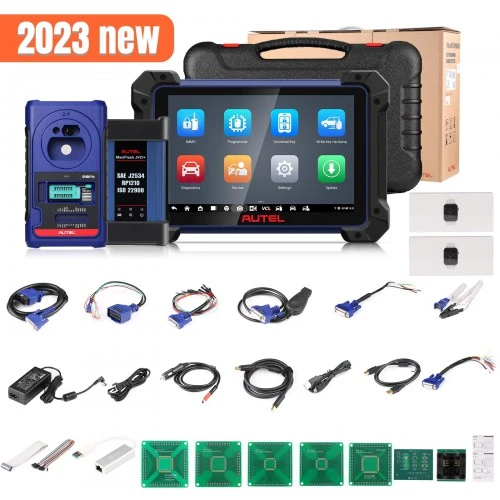

Package Includes:
1pc x IM608 II Tablet
1pc x XP400 Pro Key Programmer
1pc x JVCI+ ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Connect Cable
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x USB to Ethernet Adapter
