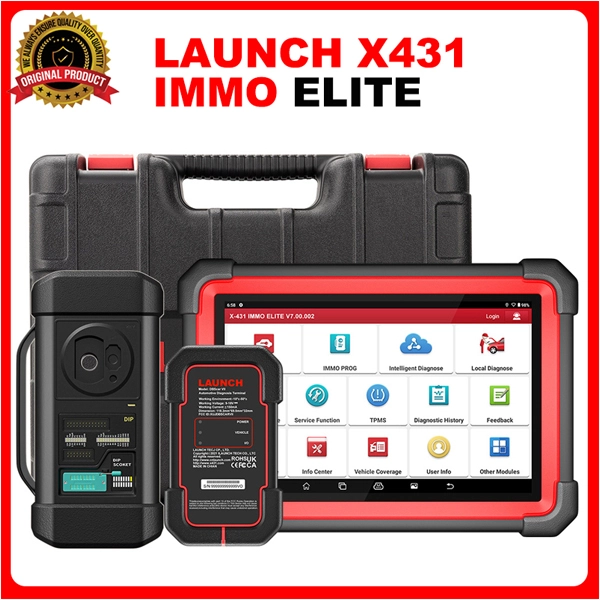

LAUNCH X431 IMMO Elite X-PROG 3 Key Programmer Car OBD2 Diagnostic Tools IMMO Anti-Theft Programming 39 Reset PK immo elite scan

LAUNCHX431 IMMO ELITE
Sold: 171
2023 New Arrival - LAUNCH X431 IMMO ELITE professional anti-theft matching, anti-theft programming, All System Diagnostic, Active Test (Bi-Directional Control), 39 Reset Service, Auto VIN Scan, 8 'inch Touchscreen, 4GB + 64GB Storage, 2 years free update.
Price:
BUY NOW :
USD
$1,100.00
Latest Price : $1,300.00
    Please select the information you wantX
Quantity:
-
+
(498 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(89)

2023 New Arrival - LAUNCH X431 IMMO ELITE professional anti-theft matching, anti-theft programming, All System Diagnostic, Active Test (Bi-Directional Control), 39 Reset Service, Auto VIN Scan, 8 'inch Touchscreen, 4GB + 64GB Storage, 2 years free update...

Good News !!!

Added 1 Year Free (Value $399 .00 ) , total Get 2 Years Free Update ​ ​Beside, After 2 Years, the device will not be locked, you can continue to use all the functions as normal ​ ​X431 IMMO PLUS and IMMO ELITE are our products , but IMMO PLUS support more functions

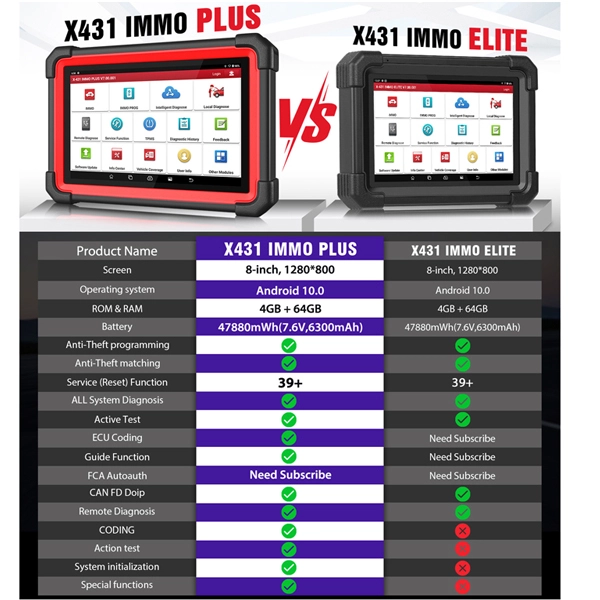

What is the different between IMMO PLUS and IMMO ELITE?

The Key Reason to Choose LAUNCH X431 IMMO ELITE

It's the best choice for intelligent maintenance of the anti-theft matching tool inrepair shops. ​ ​1. It integrates professional anti-theft matching, anti-theft programming, full-model system-wide diagnosis of basic functions and special functions. One machine with multiple functions and high performance cost ratio. ​ ​2. Added Active Test (Bi-directional Control) ​ ​3. All-round anti-theft matching, fast and accurate reading of anti-theft data ​ ​4. Read PIN code, Delete anti-theft, Delete key, Matching key, Module replacement and Module cloning ​ ​6.Covering the anti-theft matching function of many models in Asia, Europe, and America, more brands continue to be launched, up to 60+ brands ​ ​7. Support the full-model system-wide diagnosis of basic functions (read version information, read DTCs, clear DTCs, read data streams) for global 110+ brands ​ ​8. Support 39 special functions such as service lamp reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, ect... ​ ​9. Support the VIN intelligent identification function to quickly enter diagnosis ​ ​10. Fast and accurate diagnosis ​ ​11.FCA "Auto Auth" Access: AutoAuth for FCA SGW which makes X431 works with Chrysler,Dodge,Jeep,Alfa Romeo and Fiat after 2017. (Need to buy) ​ ​12. Android 10.0 open system, 8' inch TouchScreen, adopts a 2.0Ghz 4-core high-efficiency processor,4GB RAM + 64GB ROM large storage ​ ​and More

24 Language Supports, No language barrier

Italian, English, Chinese Simplified, Chinese Traditional, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian , Romanian, Serbian, Finnish, Swedish, Czech

Professional anti-theft key programming

1. Supports all key lost , add new key , Read pin code, key matching/copying, anti-theft IC reading & writing, and ECU reading & writing, etc. ​ ​2. Anti-theft modules replacement: Support anti-theft modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, ​Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc ​ ​3. Anti-theft password reading: Supports the anti-theft password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing,JAC Passenger Cars, etc. ​ ​4. Key Matching:Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc. ​ ​5.Support car key chip reading/writing, EEPROM chip reading/writing, MCU chip reading/writing, EEPROM and FLASH reading/writing of engine ECU and gearbox ECU ​ ​and more and keep increasing

Anti-theft advantages

-- Anti-theft Data Synchronization for Replaced Second-hand ABS Module of 2014MY Focus ​--Support replacement or cloning of VW/Audi MQB platform engine ECU (no need for the original car engine ECU data, it can be read directly from the key) ​-- Support replacement or cloning of VW/Audi MQB platform gearbox ECU ​-- Support replacement of Audi (0AW/0B5) fifth-generation gearbox ECU ​-- Support reading/writing and cloning of VW fourth-generation UDS engine ECU ​-- Support the cloning in BENCH mode without disassembly for more than 170 types of Bosch engine ECUs, more than 10 types of Siemens engine ECUs, and 18 types of gearbox ECUs (covering various European, American and Asian models, and continuing to increase) ​-- Support the erasing function for Mercedes-Benz engine, gearbox, EIS, and BMW gearbox. ​--- Support the matching function and password calculation function for all models of Chery sedan and JAC passenger cars up to 2022

Core Functions:

1. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc. ​2. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating. ​3. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC). ​4. Supports ECU replacement for the fourth-generation of VW/AUDI engine; ​5. Supports ECU replacement for the fifth-generation of VW/AUDI Bosch and Siemens engines. ​6. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC. ​7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty. ​8. Supports the BMW CAS4/CAS4+ module replacement. ​9. Supports the ECU cloning and replacement for BMW Siemens engines. ​10. Erase the password for Mercedes-Benz engine and gearbox within 3S. ​11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.

LAUNCH X431 IMMO PRO Supports CANFD and DIOP protocol now , it supports For GM after 2020 !

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience. ​ ​Supports For Chevrolet Onix 2020-2021 year ​Supports For Chevrolet Tracker 2020 year ​Supports For Chevrolet Suburban 2021 year ​Supports For Chevrolet Tahoe 2021 year ​Supports For Buick ​Supports For Cadillac Escalade 2021 year ​Supports For Cadillac Escalade 2021 year ​Supports For GMC Yukon 2021 year ​Supports For GMC Yukon XL 2021 year ​Supports For Holden ​Supports For DAEWOO ​Supports For Alpheon ​Supports For Ravon ​Supports For Pontiac ​Supports For Saturn ​Supports For Hummer

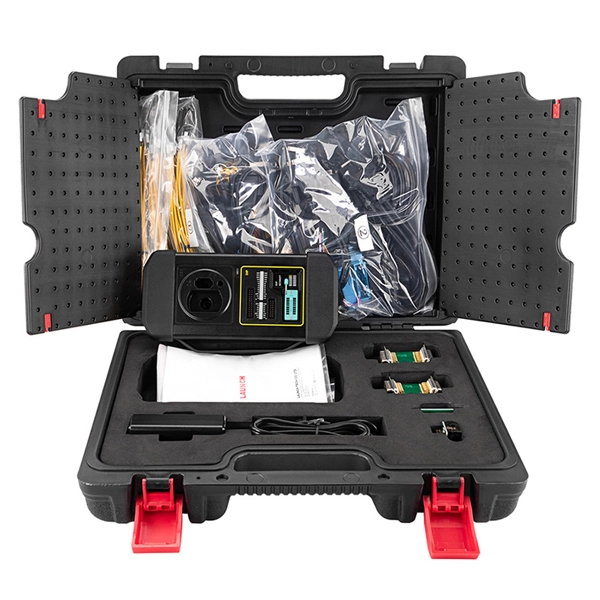

X-PROG3 Details & Functions

1. Car key slot --------- Place the car key to perform the key matching function ​ ​2.DB26 --------- Connect to various anti-theft wiring harnesses, such as the data collection line for the fourth generation of instrument keys, etc. ​ ​3. Mercedes-Benz key infrared slot --------- Place the Mercedes-Benz infrared key to perform the key matching function ​ ​4. Car key chip hole --------- Place the key chip to perform key matching ​ ​5. Status indicator --------- Power indicator ​ ​6.DIY slot --------- Connect the anti-theft ECU pin through the cable to read and write data ​ ​7. Locker Install chip burning socket --------- Complete EEPROM or MCU data read and write operations ​ ​8.DC12V power supply --------- Connect DC12 power supply ​ ​9.DB15 --------- Connect the main wiring

OE-Level Full System Diagnostic, Faster and more effective

LAUNCH X431 IMMO ELITE can establish a data link to all systems and subsystems of the vehicle being serviced to: ​ ​Read all DTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions. ​ ​Displays live data in text, graph for easy data review and analysis, record and playbacks live data to pinpoint troubles of sensors and components. ​ ​The following is a list of modern vehicle systems that this scan tool can get access to: ​ ​-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems ​ ​-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System ​ ​-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset ​ ​-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle ​ ​-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more. ​ ​This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

Active Test (Bi-directional Control)

Put out the commands to ECUs,read the ecu data and monitor the operation of actuators.Through active tests,also called actuator tests,this bi-directional can precisely locate the car problems,letting you quickly know whether a specific system,component,or subsystem is functioning properly or not. For example, If a fuel pump is not working and leads to ignition failure, it could be a faulty pump, wiring, relay, or command. By turning the fuel pump on and off via the x431 immo elite, you can quickly determine whether it’s a wiring, relay, or pump issue without removing any parts.(Note: Functions are not all available and vary by vehicle!!!)

39+ Reset Service Supports

1> Oil Reset Service ​ ​This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events. ​lt needs to be performed in the following cases: ​1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle. ​2. lf the service lamp is not on, but you have changed the engine oil or electric ​appliances that monitor oil life, you need to reset the service lamp. ​ ​2> Electronic Parking Brake Reset ​ ​This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases: ​1.The brake pad and brake pad wear sensor are replaced. ​2.The brake pad indicator lamp is on. ​3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced. ​ ​3> Steering Angle Calibration ​ ​This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body. ​To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering. ​ ​4> ABS Bleeding ​ ​This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS). ​lt needs to be performed in the following cases: ​1. When the ABS contains air. ​2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced. ​ ​5> Gear Learning ​ ​This function enables you to perform tooth learning for the car, to turn off the MIL. ​lt needs to be performed in the following cases: ​1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced. ​2. The DTC 'tooth not learned' is present. ​ ​6> IMMo Service ​ ​This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car. ​lt needs to be performed in the following cases: ​When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced. ​ ​7> Injector Coding ​ ​This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder,so as to moreaccurately control or correct cylinder injection quantity. ​lt needs to be performed in the following cases: ​After the ECu or injector is replaced. ​ ​8> Battery Maintenance System Reset ​ ​This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done. ​lt needs to be performed in the following cases:1. The main battery is replaced. ​2. The battery monitoring sensor is replaced. ​ ​9> Diesel Particulate Filter (DPF) Regeneration ​ ​This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance. ​lt needs to be performed in the following cases: ​1. The exhaust back pressure sensor is replaced. ​2. The PM trap is removed or replaced. ​3. The fuel additive nozzle is removed or replaced. ​4. The catalytic oxidizer is removed or replaced. ​5. The DPF regeneration MlL is on and maintenance is performed. ​6. The DPF regeneration control module is replaced. ​ ​10> Electronic Throttle Position Reset ​ ​This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake. ​ ​11> Gearbox Matching ​ ​This function enables you to complete the gearbox self-learming to improvegear shifting quality. ​lt needs to be performed in the following cases:When the gearbox is disassembled or repaired. ​ ​12> AFS (Adaptive Front-lighting System) Reset ​ ​This function enables you to initialize the adaptive headlamp system. ​ ​13> Sunroof Initialization ​ ​This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc. ​ ​14> Suspension Calibration ​ ​This function enables you to adjust the height of the body. ​lt needs to be performed in the following cases: ​1. When replacing the body height sensor, or control module in the airsuspension system. ​2. When the vehicle height is incorrect. ​ ​15> EGR Adaption ​ ​This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced. ​ ​16> Seats Calibration ​ ​This function is applied to match the seats with memory function that arereplaced and repaired. ​ ​17> Tyre Reset ​ ​This function is used to set the size parameters of the modified or replacedtire. ​ ​18> Coolant Bleed ​ ​Use this function to activate the electronic water pump before venting thecooling system. ​ ​19> AdBlue Reset (Diesel Engine Exhaust Gas Filter) ​ ​After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required. ​ ​20> NOx Sensor Reset ​ ​NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu. ​ ​21> Ac System Initialization ​ ​AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost. ​ ​22> High Voltage Battery Detection ​ ​This function is used for high voltage battery diagnosis and status informationdetection. ​ ​23> Windows Calibration ​ ​This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window. ​ ​24> Language Change ​ ​This function is used to change system language of vehicle center console. ​ ​25> AF Reset ​ ​This function is applied to set or learn airlfuel rate parameters. ​ ​26> Transport Mode ​ ​To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal. ​ ​27> StoplStart Reset ​ ​This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support). ​ ​28> Intelligent Cruise Control System Reset ​ ​This function is used to matching the intelligent cruise control module after it isreplaced or repaired. ​ ​29> Engine Power Balance Monitoring ​ ​This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder. ​ ​30> Gas Particulate Filter (GPF) Regeneration ​ ​This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF. ​ ​31> Motor Angle Calibration ​ ​This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position. ​ ​32> Automatic air conditioning initialization software Reset Service ( RESET ACINI ) ​ ​33> Electronic water pump starts Reset ( RESET COOLANT ) ​ ​34. RESET ECU ​35. RESET FRM ​36. RESET CLUTCH ​37. RESET GATE ​38. RESET TURBO ​39. RESET RLSENSOR

How to Connec IMMO with X-PROG 3 Well ?

1. DBSCar VII connect the Cable well first . ​ ​2. DBSCar VII connect the Tablet PC with USB Cable well. ​ ​3. DBSCar VII Connect X-prog 3 with the extend cable ( the cable with the port to connect the power ) well first ​ ​4.If has MCU-V3 board, pls plug to PROG3 ​ ​5.Connect Power cable,pls be mind the power cable need connect X-PROG 3 well ( use the cable in Step 3, if you connect MCU-V3 board , just connect MCU-V3 board directly ) , then connect the Bench model Cable connect to X-prog 3 or MCU-V3 ​ ​6.Use the exchange cable to connect Bench Model cable with the IMMO Model of the car

Remote Diagnose

This option aims to help repair shops or technicians ​launch instant messaging and remote diagnosis, making the repair job getting fixed faster.

Intelligent Diagnose

This module allows you to use the VIN information of the currently identified vehicle to access its data (including vehicle information, historical diagnostic records) from the cloud server to perform quick test, eliminating guesswork and step-by-step manual menu selection.

Diagnostic History

This function provides a quick access to the tested ​vehicles and users can choose to view the test report or resume from the last operation, without starting from scratch

LAUNCH X431 IMMO ELITE Compatible Models

1.X431 Videoscope: Check unseen parts of engine, fuel tank system, etc. ​ ​2.X431 TSGUN TPMS WAND: Activate all sensors,TPMS relearn,Program LAUNCH sensors ​ ​3.X431 RF-Sensor: Copy the original tire pressure sensor data; can be programmed unlimited times ​ ​4.X431 PROG: IMMO functions for VAG Group Above 3.5 ​ ​5.X431 BST360: Battery Health Test, Smart System Test, Charging Health Test, Test Report ​ ​6.X431 PRINTER: Print out diagnostic data/ reports

LAUNCH X431 IMMO PRO Supports Car List :

For IMMO Function : ​ ​Europen Cars : ​ ​For Audi, For Benz, For BMW, For Citroen, For GM, For Land Rover, For Mazda, For Opel, For Peugeot, For Porsche, For Renault, For MG (SAIC), For Seat, For Skoda, For Sprinter, For Suzuki, For Ford, For Volvo, For VW ​ ​China Cars : ​ ​For GWM, For Changhe, For Brilliance, For Chery, For FAW Tianjin, For ZX Auto ​ ​America Cars : ​ ​For Aston Martin, For Fiat (Brazil), For Chrysler, For Ferrari, For Fiat, For Maserati ​ ​Asia Cars : ​ ​For BAIC, For Changan, For BYD, For Foton, For Haima, For Honda, For Hyundai, For Kia, For Maxus, For Mitsubishi, For Nissan, For Perodua, For Proton, For Subaru, For Toyota, For Zotye ​ ​For Diagnostic Function : ​ ​European Cars : ​For Martin Aston, For BENZ/MAYBACH, For BMW/MINI/HCBMW/ROLLSROYCE, For CITROEN/FUKANG, For Ferrari, For Fiat/Abbas/Lancia/Romeo/NanjingFiat, For GAz, For IZH, For Land Rover/Jaguar, For Martha Lahti, For OPEL/GMSA/VAUXHALL, For PAZ, For PEUGEOT/DFPEUGEOT, For Porsche, For RENAULT, For DACIA, For Saab, For Skoda, For Seaz, For Seat, For Smart, For Transporter&V-Class, For UAZ, For VAZ, For Volvo, For VW/BINGLEY/BUGATTI, For ZAZ ​ ​China Cars : ​For Beijing, For Chang'an, For ChangCheng, For Changhe, For Xiaokang, For DR, For ECUAID, For BYD, For Foton, For HaFei, For Haima, For Brilliance, For Jiangling, For Iveco, For JAC, For Gonow, For Xiamen Golden, For Kowloon, For Lifan, For SGMW, For SAIC Chase, For MVM, For Chery, For SAIC&MG, For SGM/CHCHEVROLET/CHBUICK/CHCADLLAC, For GAC Chuan Qi, For Tianjin FAW, For ZhongShun, For ZOTYE, For Zhongxing ​ ​America Cars : ​For Brazil Fiat, For GM, For CHRYSLER/DODGE/JEEP, For GM/BUICK/CADILLAC/CHEVROLET, For Ford/ChinaFord Lincoln/EuropeanFord, For vinfast ​ ​Asia Cars : ​For Daewoo, For Daihatsu, For HONDA/ACURA/DFHONDA/GZHONDA, For Hyundai, For INDIAN MAHINDRA, For INDIAN MARUTI, For INDIAN TATA, For JPISUZU/TLISUZU, For Kia, For LUXGEN, For Mahindra, For MARUTI, For PERODUA(Perodua), For MAZDA/YQMAZDA, For Mitsubishi, For NISSAN/INFINITV/DFNISSAN, For Perodua, For Proton, For SAIP, For Ssangyong , For Subaru, For Suzuki, For TATA , For TOYOTA/LEXUS/TJTOYOTA ​ ​Australia Car : ​For Holdon

Technical Parameters

Processor : 2.0GHz 4-core ​Operating system: Android 10.0 ​Memory: 4GB ​Storage: 64GB ​Battery: 47880mWh(7.6V,6300mAh) ​Display: 8-inch, 1280*800 ​Camera: Rear 8MP ​WIFI: 2.4GHz/5GHz (dual frequency) ​Interface: TYPE A *1 &TYPE C*1 ​Operating temperature: 0~50℃ ​Size: 234*166*39.5(mm) ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​
