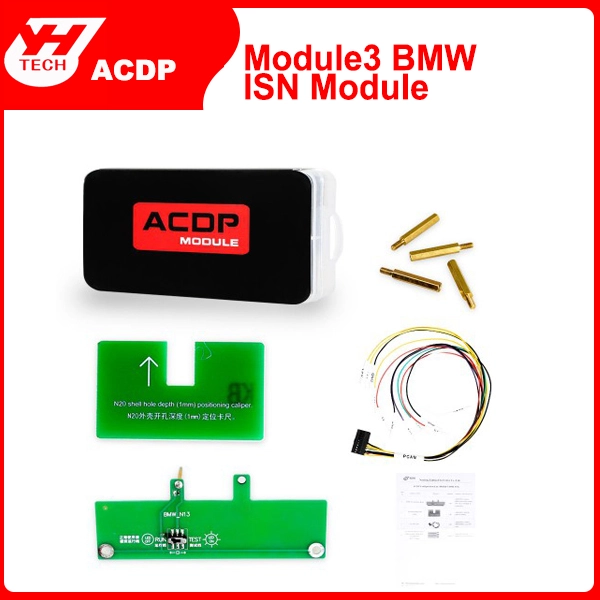

1. Yanhua ACDP-2 Module 3 BMW ISN Module
2. Support Reading/writing BMW DME ISN(Necessary when all-key-lost).
3. Read/write N20/N55/N13 ISN code via OBD. Read/write MSV80/MSD85 ISN code without opening DME shell. Read/write other DME ISN code by opening DME shell.

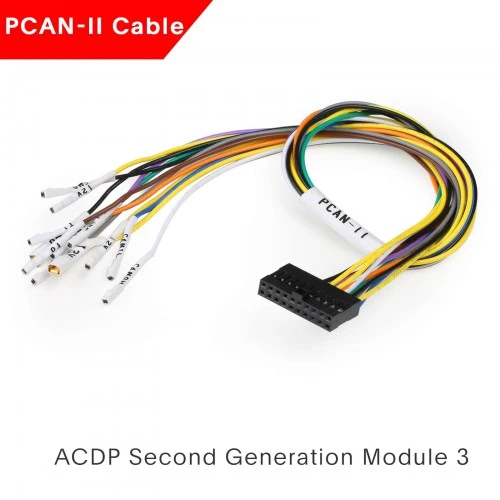

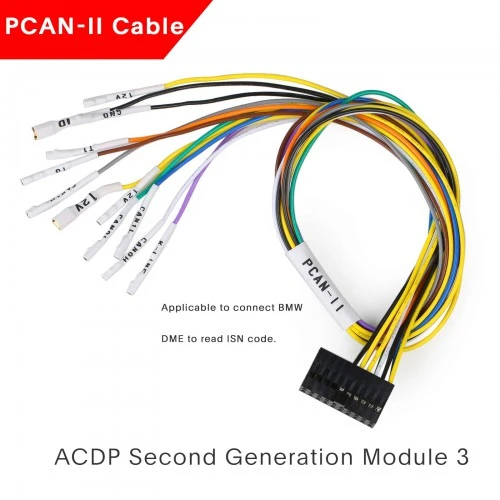

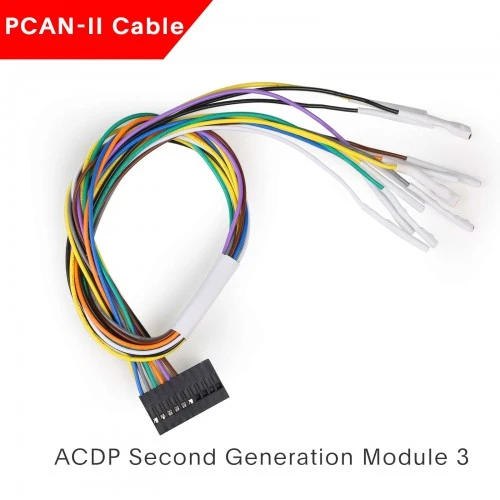

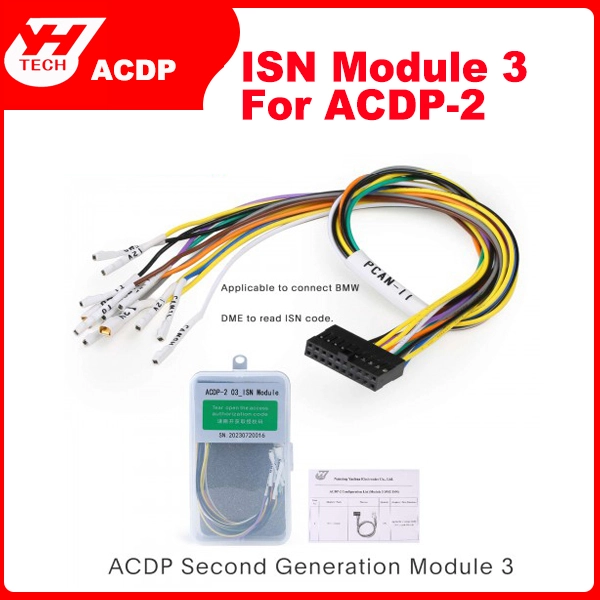

Yanhua Mini ACDP 2 Module 3 for DME ISN

The ACDP-2 Module 3 must be used with Yanhua Mini ACDP 2 basic module (sold separately), can not work with ACDP-1 Master

Module Feature:

Read ISN code of N20/N55/N13 by OBD or without opening the DME shell
Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell
Read ISN code of other models(B38, etc) by opening the shell
Read ISN code of MSV90/B48 by OBD.(Need to buy B48/MSV90 ISN Reading via OBD Authorization A51B)
Read & write ISN code on Bench. Support full versions of the N13/N20/N63/S63/N55/B38 etc.(Need to buy Bench interface board)
ECU Clone. Support BMW N13/N20/N63/S63/N55/B38 Dflash and Pflash reading/writing. (Need to buy Bench interface board and A51C ECU Clone authorization)

Read and Write ISN Code:

N20(MEVD1724, MEVD172P, MEVD1729), N13(MEVD1725), N55(MEVD172, MEVD1726, MEVD172G, MEVD172S, MEVD17), MSV80, MSD81, MS085, MSD85HY, MSD87, MSV90, MEVD1728(s63), MEV1722, MED172, MEVD1727, DDE701,DC17C50, BMSX.

Read & write ISN code on Bench:(Need to buy Bench Interface Board)

Interface board type	Exx	Fxx	Gxx	Rxx	Ixx
N20 Bench interface board	N20(MEVD172P)	N13(MEVD1725)	-	-	-
N20(MEVD1724)	N20(MEVD172P)	-	-	-
N20(MEVD1729)	N20(MEVD1724)	-	-	-
-	N20(MEVD1729)	-	-	-
-	N26(MEVD1729)	-	-	-
-	N63(MEVD172H)	-	-	-
-	N63(MEVD1728)	-	-	-
-	S63(MEVD172H)	-	-	-
-	S63(MEVD1728)	-	-	-
N55 Bench interface board	N55(MEVD172)	N55(MEVD172)	-	-	-
	-	N55(MEVD172G)	-	-	-
	-	N55(MEVD1726)	-	-	-
	-	S55(MEVD172G)	-	-	-
B38 Bench interface board	-	B38(MEVD172K)	-	B38(MEVD172K)	B38(MEVD172K)
-	B38(MEVD1723)	-	B38(MEVD1723)	B38(MEVD1723)
-	B48(MEVD172K)	-	B48(MEVD172K)	-
-	B48(MEVD1723)	-	B48(MEVD1723)	-
-	-	-	XM71(MEVD172K)	-
-	-	-	XM71(MEVD1723)	-
B48/B58 Bench Interface Board	-	B37(MD1CS001)	B46(MG1CS201)	B37(MD1CS001)	-
-	B38(MD1CS001)	B47(MD1CP002)	B48(MG1CS201)	-
-	B48(MG1CS003)	B47(MD1CS001)	-	-
-	B48(MG1CS201)	B48(MG1CS003)	-	-
-	B58(MG1CS003)	B48(MG1CS201)	-	-
-	-	B57(MD1CP002)	-	-
-	-	B58(MG1CS003)	-	-
-	-	B58(MG1CS201)	-	-
-	-	N63(MG1CS201)	-	-
-	-	N74(MG1CS003)	-	-
-	-	N74(MG1CS201)	-	-
BMW-DME-ADAPTER X1	N47(ECD17C50)	B37(ECD17C50)	-	B37(ECD17C50)	-
-	B47(EDC17C50)	-	B47(ECD17C50)	-
-	B47(EDC17CP49)	-	N47(EDC17C50)	-
-	N47(ECD17C50)	-	-	-
-	N47(ECD17C76)	-	-	-
-	N57(ECD17C76)	-	-	-
-	N57(ECD17C56)	-	-	-
-	N57(ECD17CP49)	-	-	-
BMW-DME-ADAPTER X2	N47(ECD17C41)	N47(ECD17C41)	-	N47(ECD17C41)	-
N57(ECD17CP45)	N47(ECD17CP45)	-	-	-
-	N57(ECD17CP45)	-	-	-
BMW-DME-ADAPTER X3	-	-	-	-	BMSX(ME172)
BMW-DME-ADAPTER X4	-	-	-	N12(MEV172)	-
-	-	-	N14(MED172)	-
BMW-DME-ADAPTER X5	N47(ECD17C06)	-	-	-	-
N47(ECD17CP02)	-	-	-	-
BMW-DME-ADAPTER X7	N57(ECD17CP09)	N57(ECD17CP09)	-	-	-
BMW-DME-ADAPTER X8	N45(ME1721)	-	-	-	-
N46(MEV1721)	-	-	-	-
